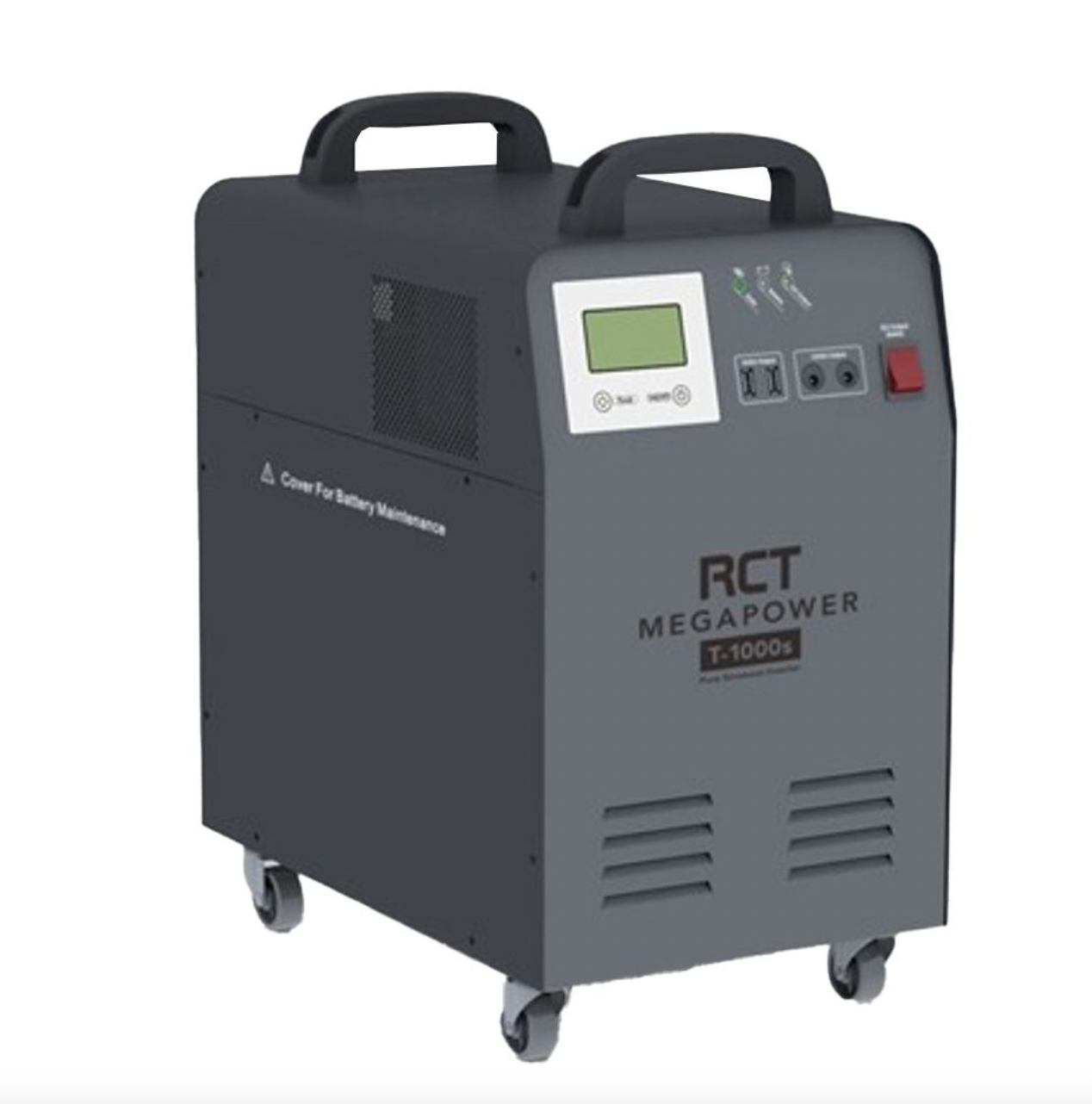

RCT MegaPower 1KVA/1000W Inverter Trolley With 1 x 100AH Battery

Description

DESCRIPTION:

RCT MP-T1000S

• Pure Sinewave for Sensitive Electronics & Motorised Loads
• Microprocessor Control Optimizes Reliability
• Input Power Factor Correction
• Output Power Factor 1.0
• Comprehensive Display Allows Easy Monitoring & Access of UPS Status
• Built-in MPPT solar charger
• 2 x USB 5 V DC output and 2 x 12 V DC output
• Battery cut off switch for safety
• Pre-installed batteries

Specifications:

• RATED POWER: 1000 W
• OUTPUT VOLTAGE: 220 VAC
• OUTPUT FREQUENCY: 50 / 60 Hz
• OUTPUT WAVEFORM: Pure Sine Wave
• SOLAR INPUT
• MAXIMUM PHOTOVOLTAIC VOLTAGE (VDC): 25 V
• CHARGE VOLTAGE (VDC): 10 V – 25 V
• RATED CHARGE CURRENT (A): 30 A
• MAXIMUM POWER (Wp): 360 Wp
• VOLTAGE OVERCHARGE PROTECTION (VDC): 14.2 V
• VOLTAGE OVERCHARGE RECOVERY (VDC): 14.0 V
• VOLTAGE OF FLOATING CHARGE (VDC): 13.7 V
• AC OUTPUT: 2 x SA 3 Pin Socket – 230 V 50 Hz, 1000 VA / 1000 W Max. (Combined)
• USB OUTPUT: 2 x USB Type A Port – 5 VDC 2 A Max.
• DC OUTPUT: 2 x 12 V DC Port 2 A Max.
• BATTERY TYPE: 1 x 12 DC 100 AH Deep Cycle VRLA Gel Battery

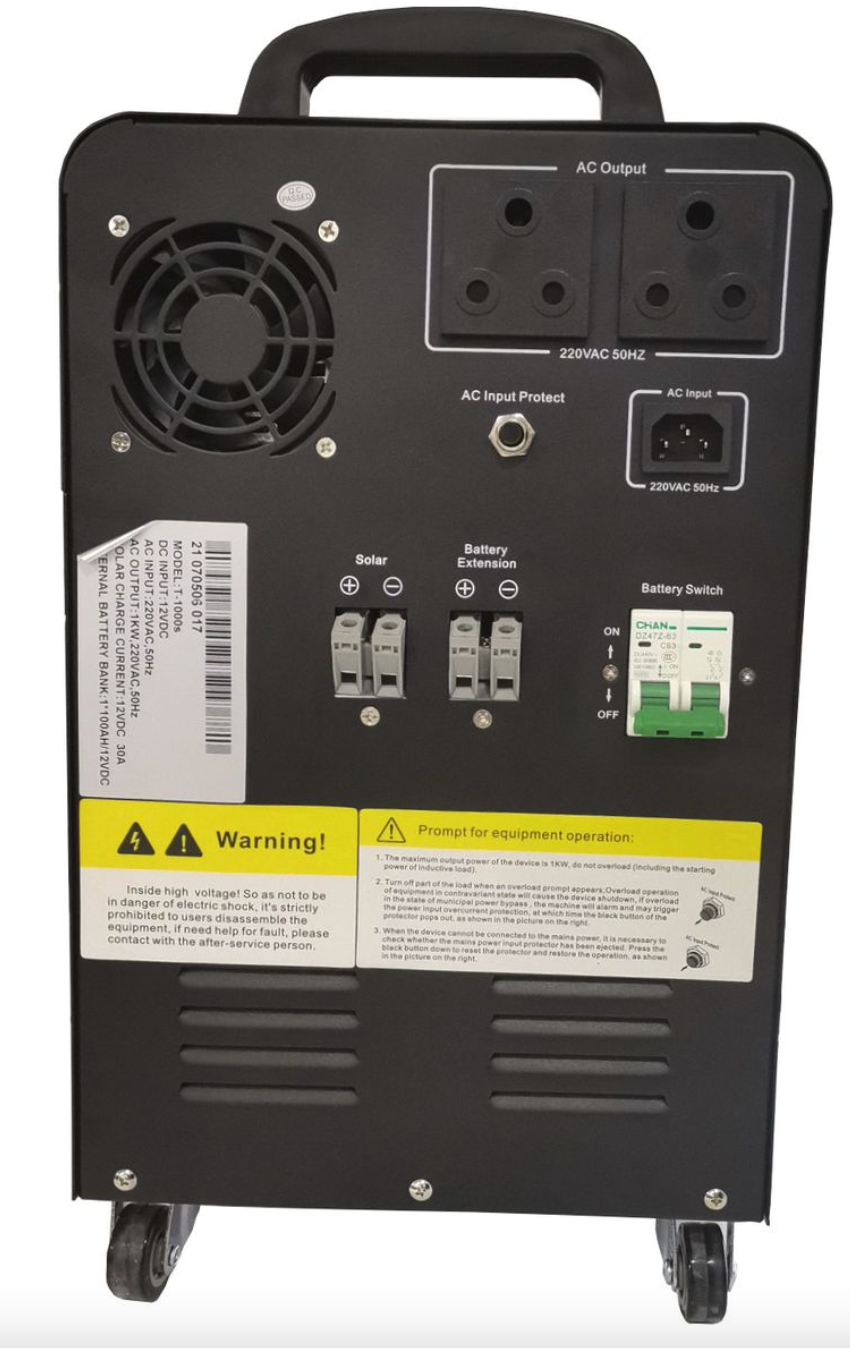

Ports and Interfaces:
1. AC Output
2. Smart Cooling Fan
3. AC Input
4. Solar PV Input
5. Battery Extension
6. Battery Switch
7. Led Indicator
8. LCD Display
9. Function Buttons
10. On / Off Buttons
11. 5VDC Output
12. 12VDC Output
13. DC Output Switch
